M Series

It would be a bold new statement for your laboratory.

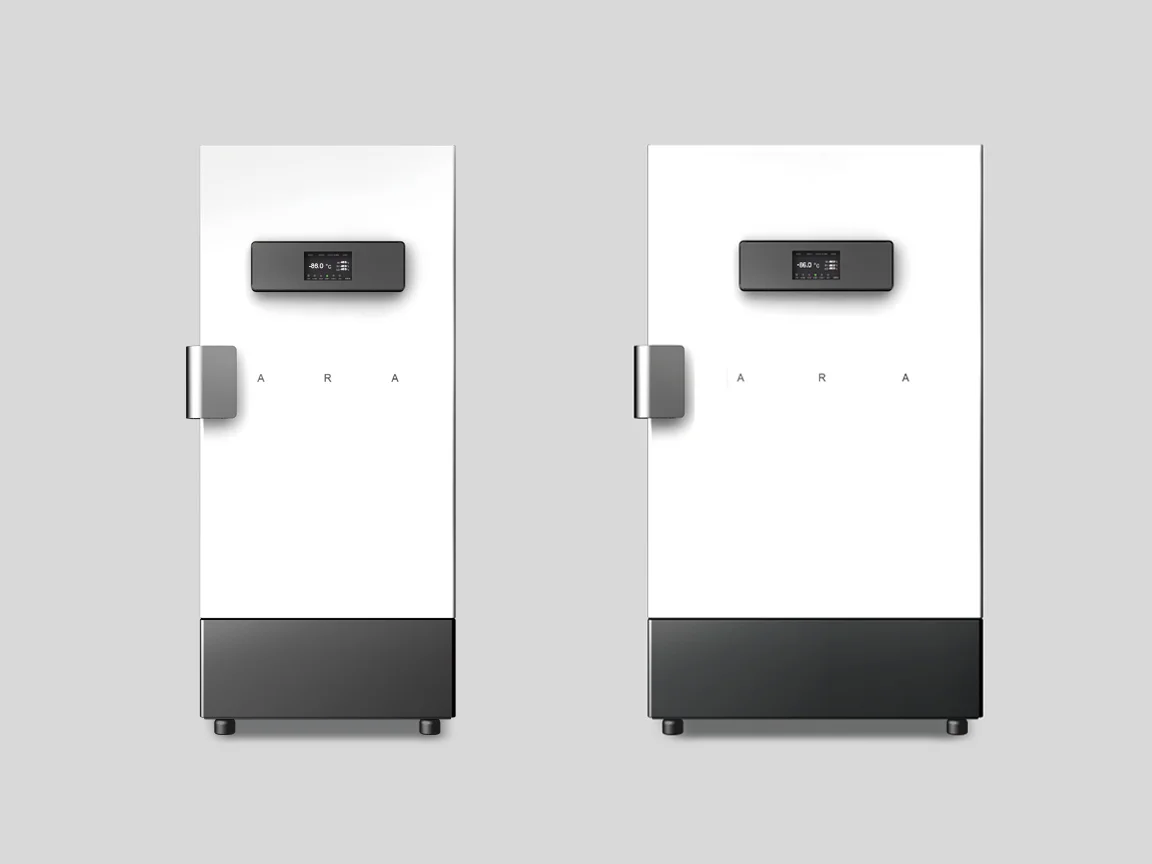

Deep Freezer Like No Other

The M Series by ARA is a collection of Deep Freezers for storing samples down to minus 95°C varying in different sizes and features. Aside from its industry leading design and build quality, features like DualBrain™ and Independent Dual Compressors, make each unit virtually impossible to fail.

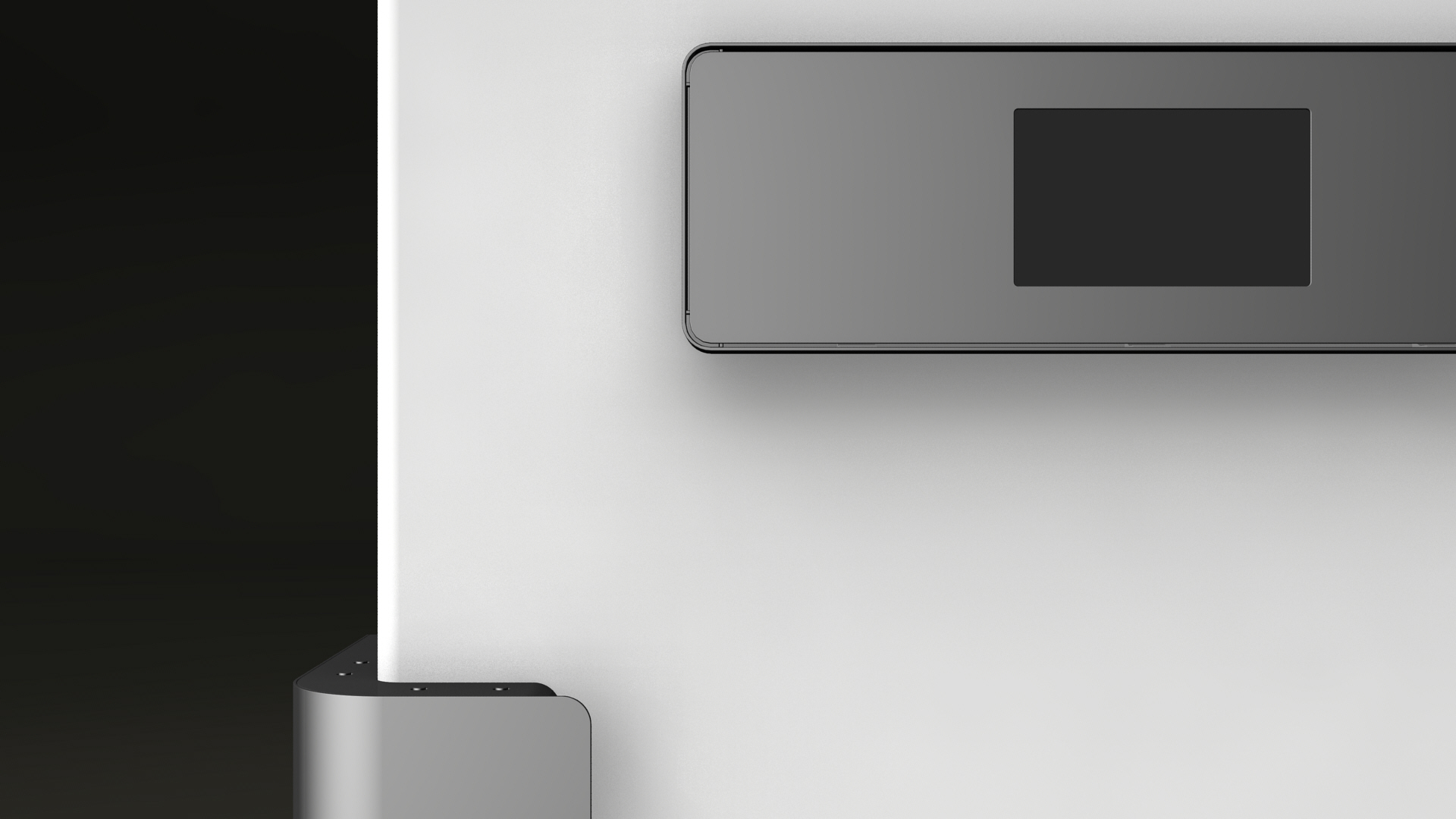

Touch Screen with DualBrain™

All M series come standard with an easy to use touch screen user interface with legible graphical data displayed all times. Behind the bold casing hides the DualBrain™ system, that has two independent control boards working as an emergency backup system for each other.


Secure-AutoDoor™

With an option of Secure-AutoDoor™, opening and closing of the pressure locked door is as easy as pressing a button. Not only this works as a convenience feature, but it also works as a way to control the access to the unit. With different user access codes, the admin can limit, track, and record all user activities.



Others

Typical dual compressor system where the compressors are dependent to each other making the system unable to maintain its temperature when one compressor fail.


M Series

Two independent compressors work as separate cooling systems that one can continue to fully function independently even when the other compressor fail.



Features

  • Fast pull-down and recovery to optimal storage temperature (500L Dual / -95℃, 700L Dual / -90℃)

  • Unique pin-less Block Condenser and Independent Compressor (single or dual selectable) structures

  • Failure free Dual Brain PCB and dual Independent Compressor systems

  • Effortless Auto-Door with safe lock& unlock function (optional manual door is available)

  • Controllable ECO mode of dual compressor model for energy saving operation

  • Informative 7” display and touch screen control

  • Data tracking and storage to chart recorder or through USB transfer

  • Alarm warning of text message transfer to max. 5 users

  • No need of dust cleaning by very simple compressor and condenser structure

  • LCO2 or LN2 backup system is available



11 Different Models

M Series come in multiple sizes, ranging from 85 liters to 876 liters, and other customizable options are available as well. There are 11 different combinations to choose from, so the choice is yours.



Selection Guide

selec1 (1).jpg

1) Freezer Space & Type

(Upright Type) 85L, 317L, 404L, 514L, 732L, 876L


2) Door Type

Automatic Door, Manual Door


3) Compressor type

[M80 – M(D)500] Dual(Full): -95℃ / Single & Dual(Eco): -86℃ [M(D)700-M(D)870] Dual(Full): -90℃ / Single & Dual(Eco): -80℃


4) Freezer Space & Type

(Open Rack) AMA-OR S/M/L/X for upright type (Tray Drawer) AMA-TD S/M/L/X for upright type (Box Drawer) AMA-BD S/M/L/X for upright type

Technical Specifications

  • Capacity: 85L, 317L, 404L, 514L, 732L, 876L

  • Lowest Temperature:

    [M80 – M(D)500] Dual(Full): -95℃  /  Single & Dual(Eco): -86℃
    [M(D)700-M(D)870]Dual(Full): -90℃  /  Single & Dual(Eco): -80℃

  • Compressor: Hermetic type, Single or independent dual compressor

  • Condenser: Block condenser, pin-less, filter free mechanism

  • Refrigerant: Natural (CFC free refrigerant system)

  • Controller & Display: Failure free dual controller and 7" TFT LCD touchscreen.\

  • Door: Door opening and closing by pressing a touch button on control screen (Manual Door is Optional)

  • Material: Internal stainless steel / External powder coated steel plate

  • Power supply: single phase, AC 230V, 50/60Hz (optional AC 120V. 60Hz)
