D Series

A beautiful balance of performance and design.



Magnetic Stirrers, D-MS series

The D-MS series by ARA offer solutions for multiple mixing and shaking tasks with liquid volumes ranging from 800 mL to 3,000 mL.



D-MS

The D-MS1 runs at speeds range from 100 to 1,500 rpm and stirs volumes of up to 800 mL.

  • Max. speed : 100 to 1,500 rpm

  • Max. stirring capacity : 800 mL

  • Dimension of working area : Φ 120 mm

  • Dimension : 147W x 131D x 26H, mm

  • Net weight : 850 g


D-MS2

The D-MS2 runs at speeds range from 0 to 2,500 rpm and stirs volumes of up to 3,000 mL.

  • Max. speed : 0 to 2,500 rpm

  • Max. stirring capacity : 3,000 mL

  • Dimension of working area : Φ 130 mm

  • Dimension : 150W x 185D x 51H, mm

  • Net weight : 440 g

  • Protection class acc. to DIN EN 60529 : IP54

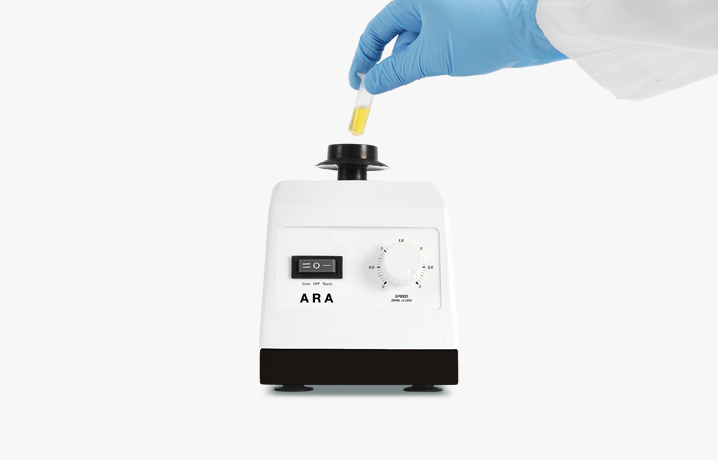

Vortex Mixer, D-VM series

The D-VM series by ARA offer solutions for multiple laboratory applications from soft mixing and shaking tasks to resuspending a cell pellet.



D-VM1

The D-VM1 can run up to 4,500 rpm and suitable for short-time operation(touch function)

  • Max. speed : 4,500 rpm

  • Operation Mode : Touch on

  • Head : Max. Φ 30 mm tube

  • Dimension : 100W x 100D x 67H, mm

  • Net weight : 550 g


D-VM2

The D-VM2 can run to 3,000 rpm and suitable for short-time operation(touch on) or continuous.

  • Max. speed : 3,000 rpm

  • Operation Mode : Touch on or Continuous

  • Head : Mixing cup, multi-cup, microplate, etc.

  • Dimension : 130W x 155D x 155H, mm

  • Net weight : 3 kg



Laboratory Shakers, D-SD/D-ST/D-SR/D-SO

The D-S series by ARA offer a group of laboratory shakers for various types of motion including orbital, reciprocating, tilting and 3D motion.

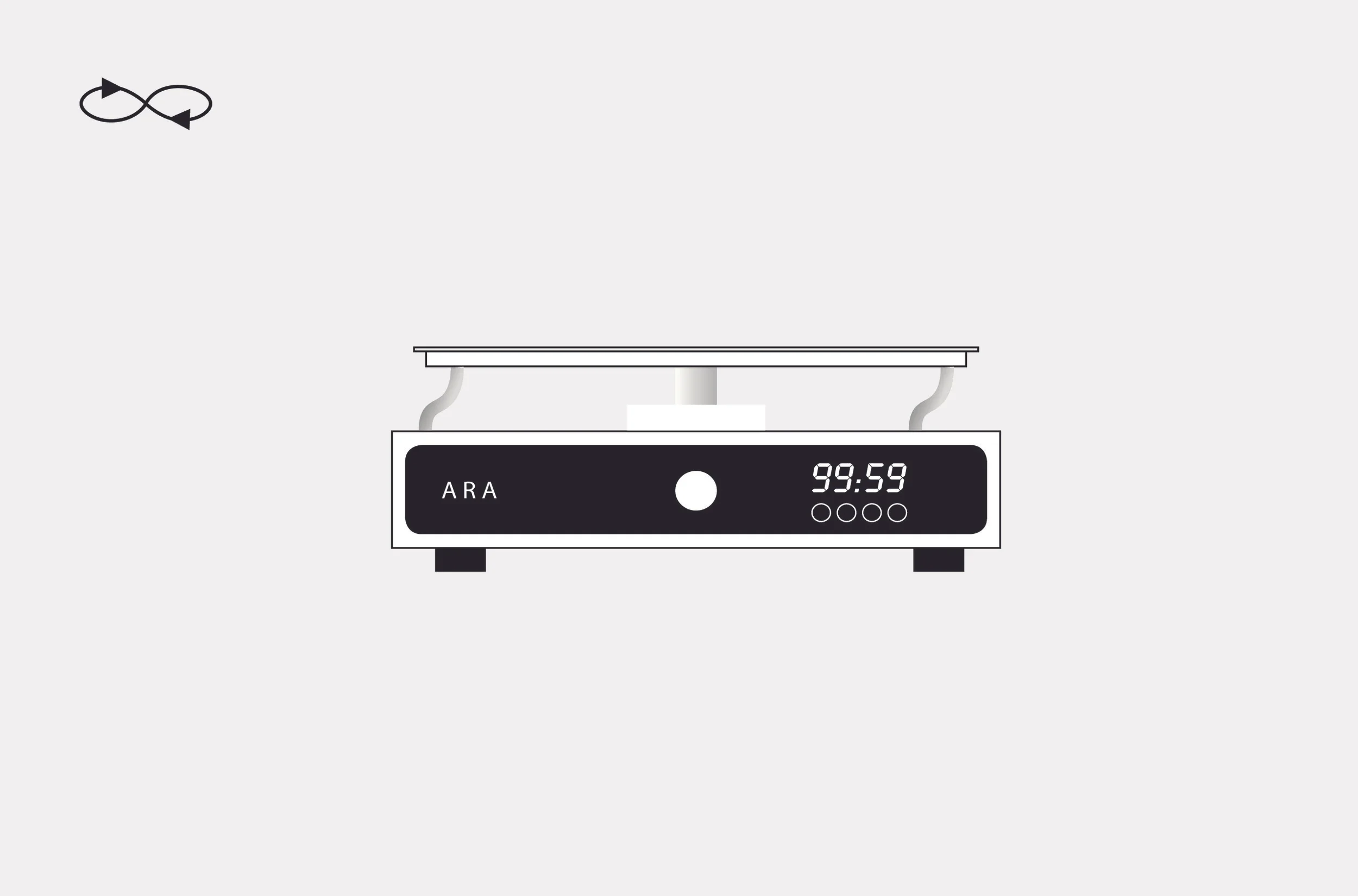

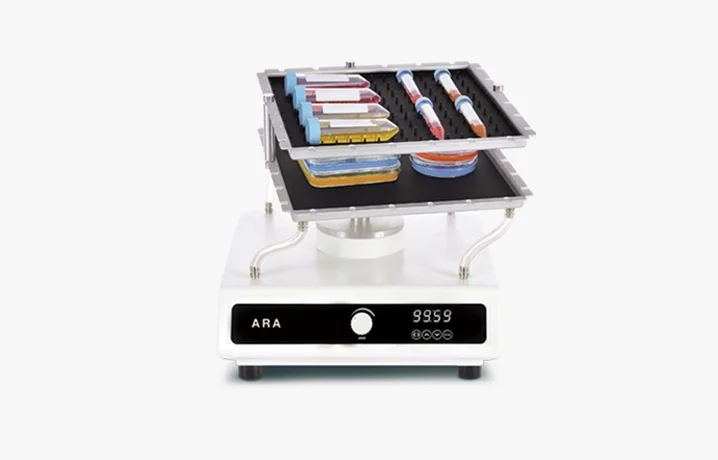

3D Motion Shaker, D-SD

The D-SD can run up to 140 rpm and can load max. 3 kg.

  • Max. speed : 0 to 140 rpm

  • Shaking angle : 0 to 15°

  • Max. load : 3.0 kg

  • Time control : 99H : 59M, continous

  • Platform area, mm : 295W x 295D

  • Dimension, mm : 360W x 360D x 257H

  • Net weight : 8.2 kg


Tilting Shaker, D-ST

The D-ST can run up to 60 rpm and can load max. 2 kg.

  • Max. speed : 0 to 60 rpm

  • Shaking angle : ± 11 °

  • Max. load : 2.0 kg

  • Time control : 99H : 59M, continous

  • Platform area, mm : 270W x 176D

  • Dimension, mm : 300W x 250D x 154H

  • Net weight : 5.8 kg

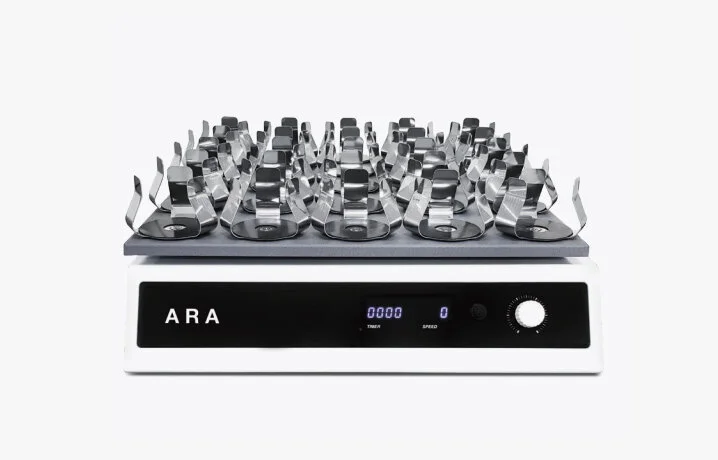

Reciprocal Shaker, D-SR Orbital Shaker, D-SO

The D-SR/D-SO can run up to 250/350 rpm and can accommodate as many as 100 mL, 250 mL, 500 mL , 1000 mL, 2,000 mL flask.

  • Max. speed : 0 to 250 rpm (D-SR) / 0 to 350 rpm(D-SO)

  • Max. load : 100 mL x 16 to 60, 250 mL x 9 to 40, 500 mL x 9 to 24, 1 L x 4 to 15, 2L x 2 to 8

  • Time control : 999.9H



Laboratory roller mixer, D-R series

The DR series by ARA offer a group of laboratory roller mixer for smooth rolling and rocking mixing action.

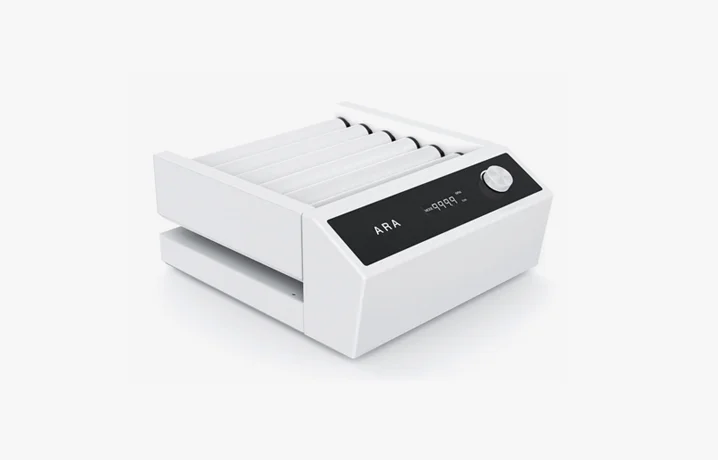

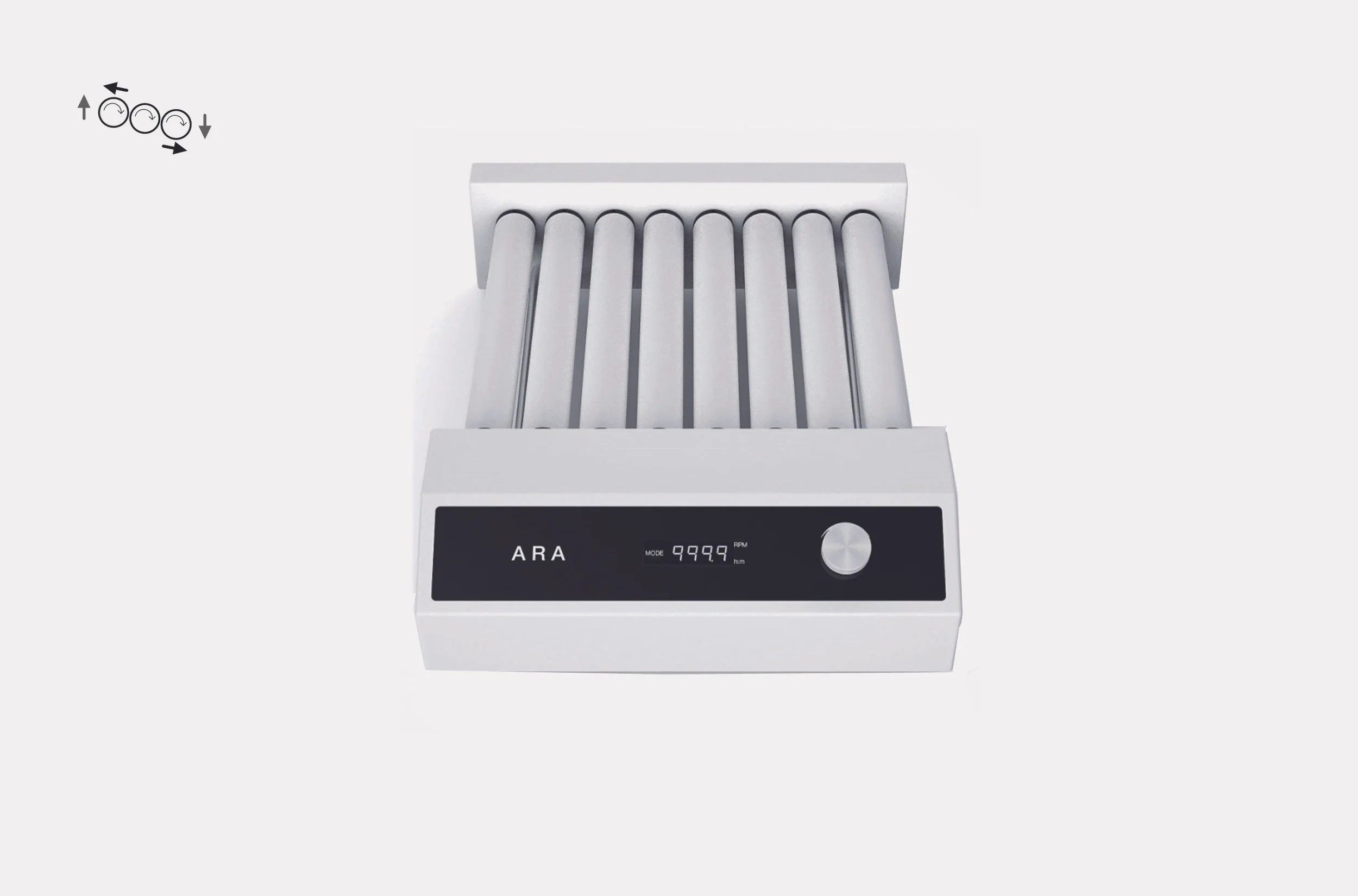

8 rollers mixer, D-R8

The D-R8 is 8 rollers which allows mixing of blood collection tubes and can be run up to 80 rpm.

  • Number of tube rollers : 8 rollers

  • Max. capacity : 14 of 50 mL Tubes

  • Speed : Variable, 3 to 8 rpm

  • Time control : Timed < 100 H or continuous


6 rollers mixer, D-RT6

The D-RT6 is 6 rollers which allows mixing of blood collection tubes and can be run up to 80 rpm.

  • Number of tube rollers : 6 rollers

  • Max. capacity : 10 of 50 mL Tubes

  • Speed : Variable, 3 to 8 rpm

  • Time control : Timed < 100 H or continuous
